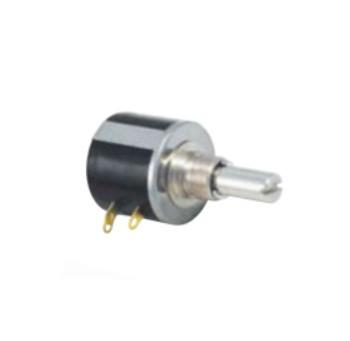

Model: WXD534

Technical Specification:

ELECTRICAL CHARACTERISTICS

RANGE OF NOMINAL RESISTANCE 200Ω~100KΩ

RESISTANCE TOLERANCE ±5% or ±10%

INDEPENDENT LINEARITY ±0.5%

TERMINAL RESISTANCE ≤0.2% OR 5Ω

ROTALION NOISE ≤3%R OR 3Ω

WITHSTAND VOLTAGE 500AC

EFFECTTVE ELECTRICAL TRAVEL 3600°

ENVIRONMENTAL CHARACTERISTICS

RATED POWER 160VAC, 2W: 70℃ , W: 125℃

TEMPERATURE RANGE -15℃~ +55℃

TEMPERATURE COEFFICENT ±100ppm/℃ maximum / unit

TEMPERATURE VARIATION ΔR≤±2%R

COLLISION 390m/S² , 4000 cycles ΔR≤±1%R

VIBRATION 10~500HZ, 0.75mm, 6h ΔR≤±1%R
electric interrupt ≤100us

CLIMATE CATEGORY ΔR≤±3%R R1≥100MΩ

70℃ ElECTRIC ENDURANCE 2W, 1000h, ΔR≤±3%R

MECHANICAL ENDURANCE 10,000 cycles ΔR≤±3%R

LIFE 10,000 cycles

STEADY DAMP-HEAT ΔR≤±3%R, R1≥100MΩ

PHYSICAL CHARACTERISTICS

TOTAL MECHANICAL TRAVEL 3600°±10°

STARTING TORQUE ≤36mN.m

STOP STRENGTH ≥300mN.m
